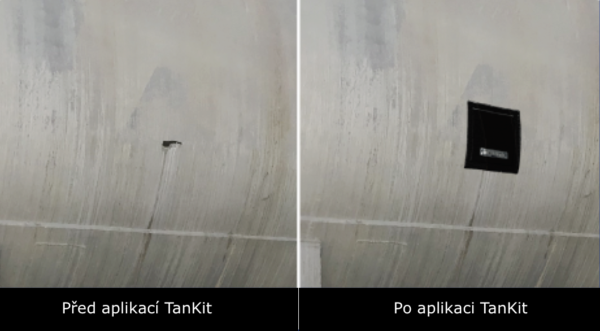

TanKit® is an emergency and temporary composite repair system for tanks and pressured vessels suffering from corrosion defects and / or mechanical damages up to 100 mm hole size. It is a pre-engineered solution to restore original integrity without shutdown, unless active leakage.

TanKit is a composite technical alternative to welded metal plate and equipment replacement. TanKit is a proven concept which provides the required strength to reinforce temporarily the damaged tank or vessel.

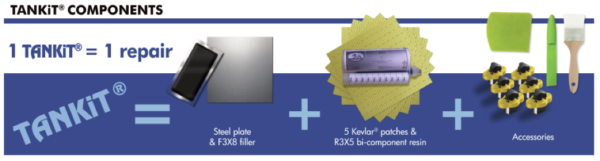

The original 3X concept, TanKit is a wet lay-up multi-layer combination of a cold welded steel plate, 400 g/m2 Kevlar® tape and highly-reinforced ceramic epoxy resin. This specific resin composition provides excellent anti-erosion and chemical features. Even in case of through wall defect, the fluid is kept inside the vessel / tank by the composite sleeve allowing restoring line integrity. The epoxy resin allows binding and transferring loading through the whole composite system.

The bi-directional woven high-strength aramid-fiber material provides reinforcement in the hoop and axial directions.

This pre-engineered product is sold in complete kit and can be used only in specific cases up to 100 mm hole diameter, it does not require further engineering or calculations.

Data Sheet
TanKit (in Czech)
Application Instructions
TanKit (in Czech)
